Can Water Filters
1.Marine can water filter JIS F 7121 5K,S type,LA type,LB type available.
2.Main material：
| Body | cast iron (FC200) |
| Bonnet: | cast iron(FC200) |
| Strainer: | stainless steel (SUS304) |
| Gasket: | non-asbestos |
| Yoke : | FCD450 |
| Air vent plug: | brass |
| Drain plug: | brass |
3.Design Standard: JIS 7121-1996
4.Test standard: JIS 7200-1996
5.Hydraulic test pressure: body-0.3Mpa
6.Flange size as per JIS B 2220-5K
7.Specification of Marine Cast Iron Can Water Filter JIS F 7121 5K (DN125-DN400)

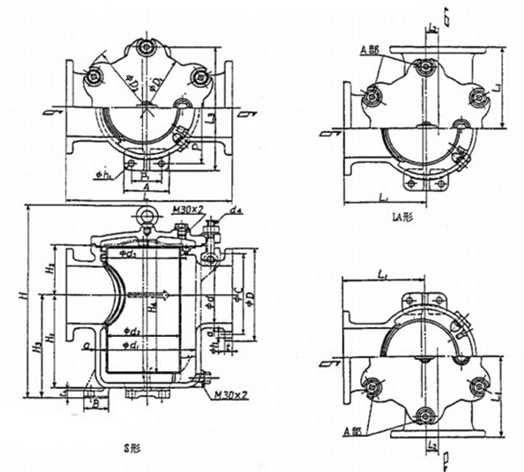

8.Drawing of Marine Cast Iron Can Water Filter JIS F 7121 5K (DN125-DN400)
