JIS F 2023 Cast Steel Chain Stopper

JIS F 2023 Cast Steel Chain Stopper

JIS F 2033 Cast Steel Chain Stopper  is small size marine anchor chain cable stopper.It is dispozed between the windlass and the hawse pipe deck,The level can clamp the anchor chain and prevent chains slip out.When the vessel is mooring,chain stopper transport the pull strength of anchor and chain to the vessel.It reduces the working load and protect the anchor windlass.We can also produce the customized Chain Stopper for you according to your detailed requirements.For more information,please feel free to contact us.

Features of JIS F 2023 Cast Steel Chain Stopper

1.Model Type:small size marine anchor chain cable stopper

2.Standard:JIS F 2023-1976

3.Material:cast steel

4.Applicable to grade 3 Chain cable:17 to 36mm;

5.Finish:anti-rust paint

6.Color:red,black,grey,blue etc;

7.High quality,durable,long life time;

8.Withstand 80% of chain cable's minimum breaking load;

9.Competitive price,short delivery,excellent service;

10.Certificate:CCS,ABS,BV,NK,DNV etc;

11.Can be customized according to customers' requirements

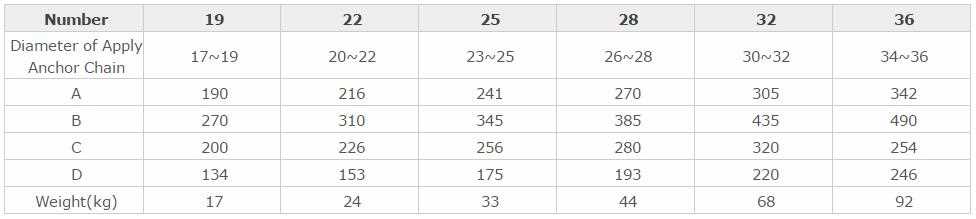

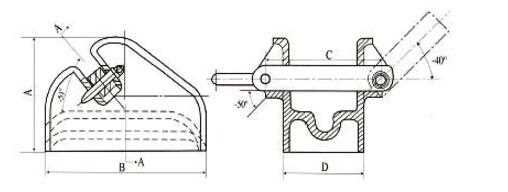

Drawings and Specification:



unit:mm
